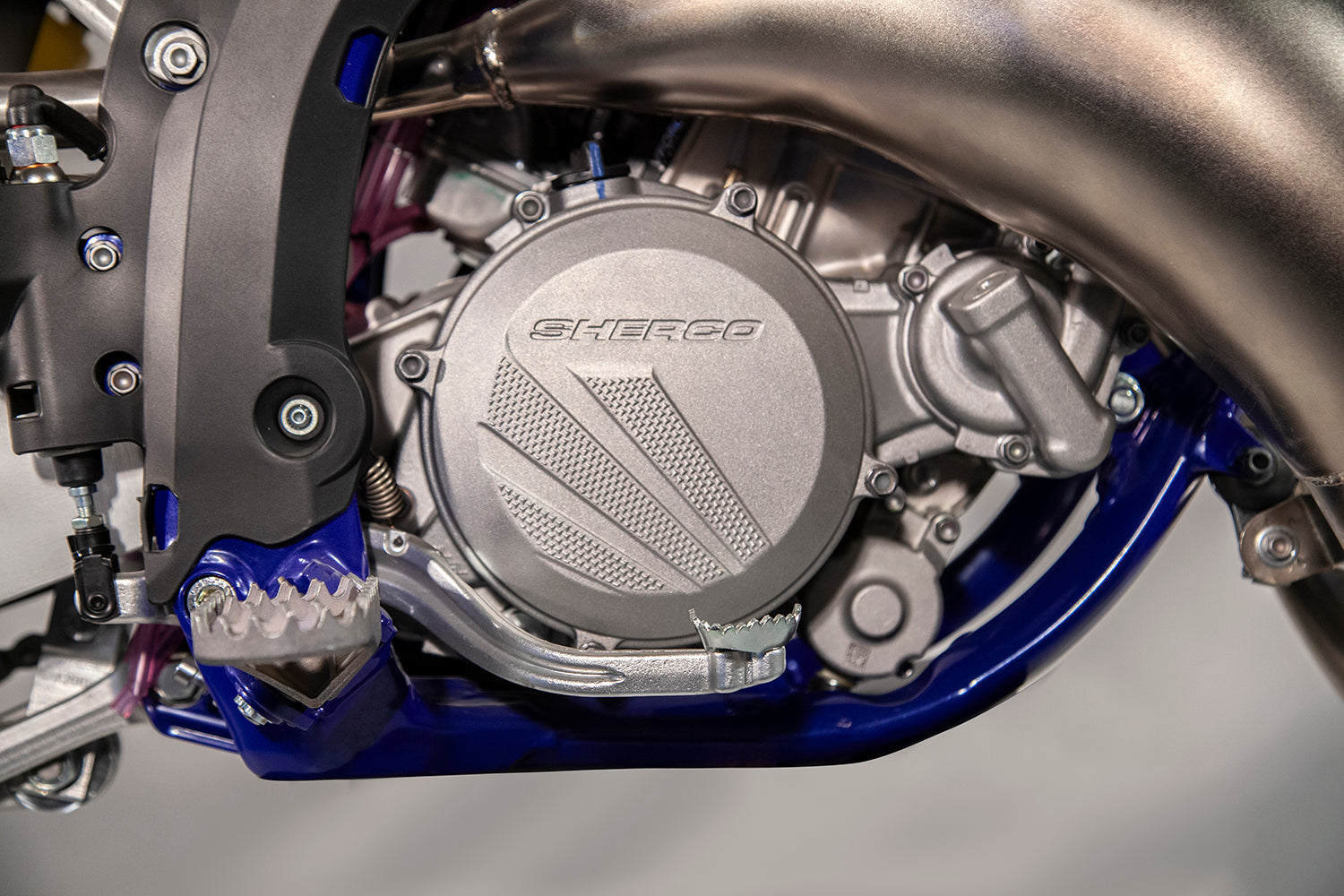

Engine

Single-cylinder 2-stroke engine with Electronic control valve and booster

Displacement

124,81 cc (7,62 cu in)

Bore x stroke

54 x 54,5 mm (2,13 x 2,15 in)

Carburator

Keihin PWK 36

Battery

BS Battery 12V 140A Lithium

Lubrification

Pre-mix 2%

Fuel

Unleaded Gasoline 98

Cooling

Liquid cooling with forced circulation

Start

Electric Starter

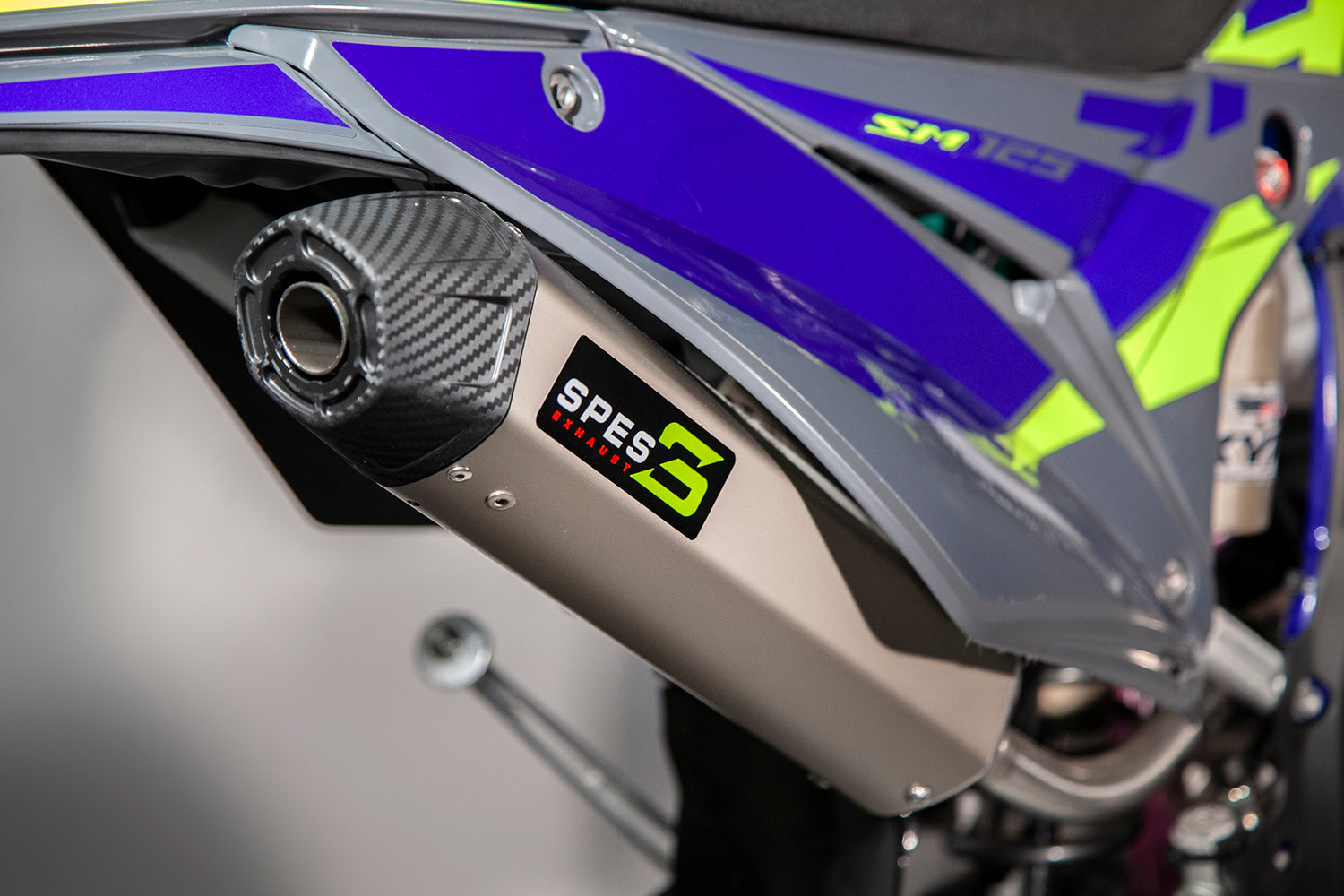

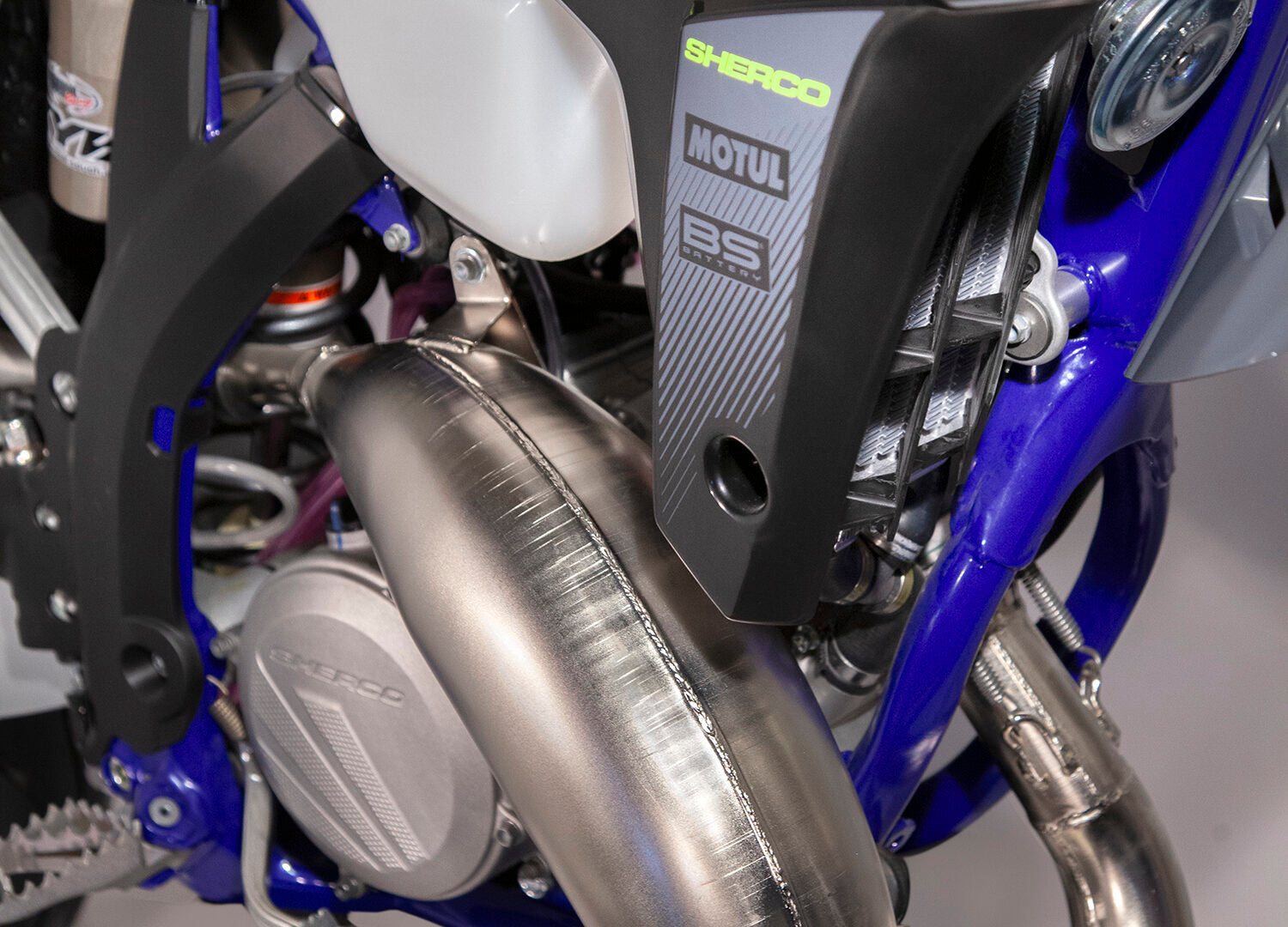

Exhaust

Aluminium Silencer with carbon end cap

Ignition system

DC - CDI ignition with digital advance

Transmission

6-speed transmission – gear drive primary and chain drive secondary

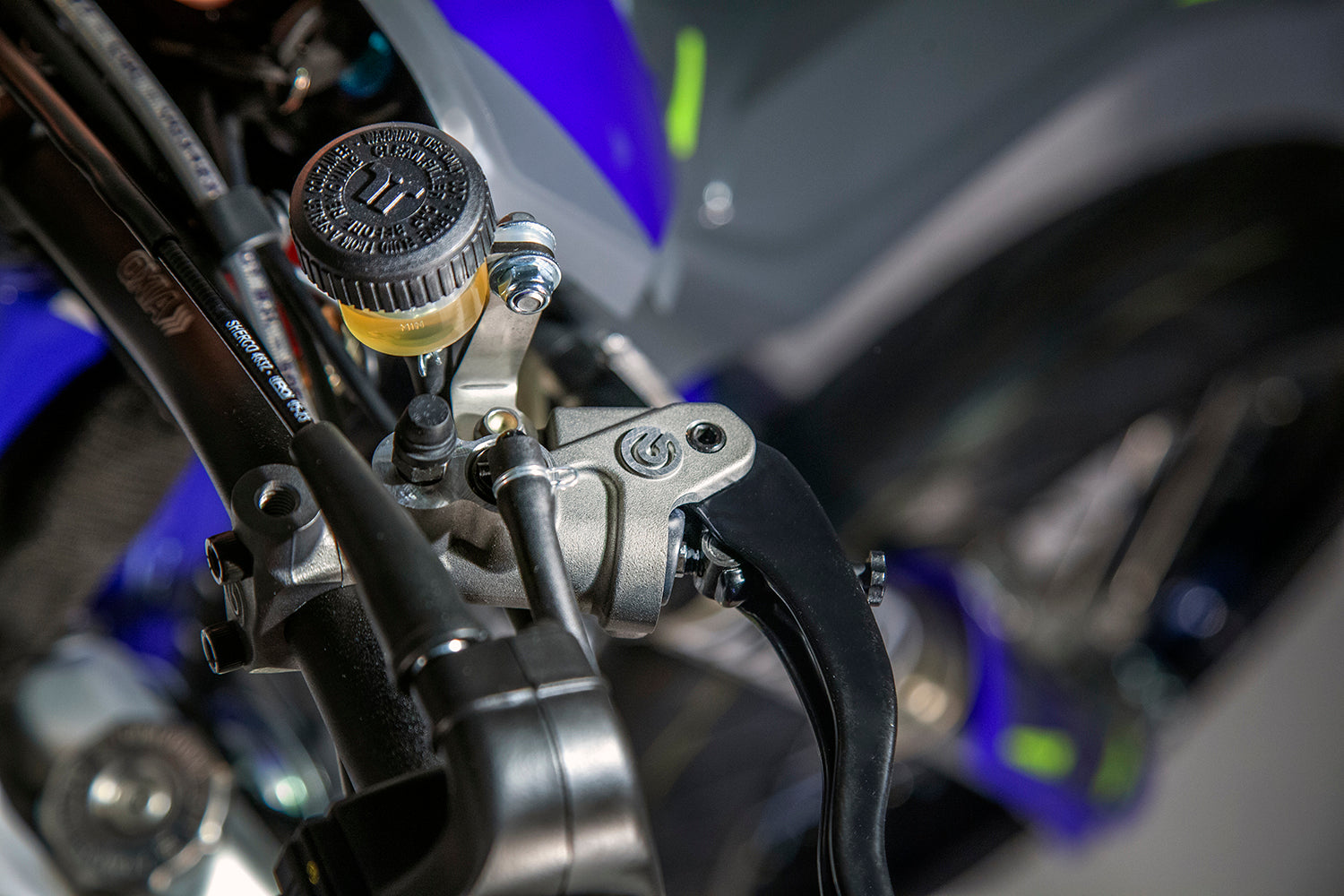

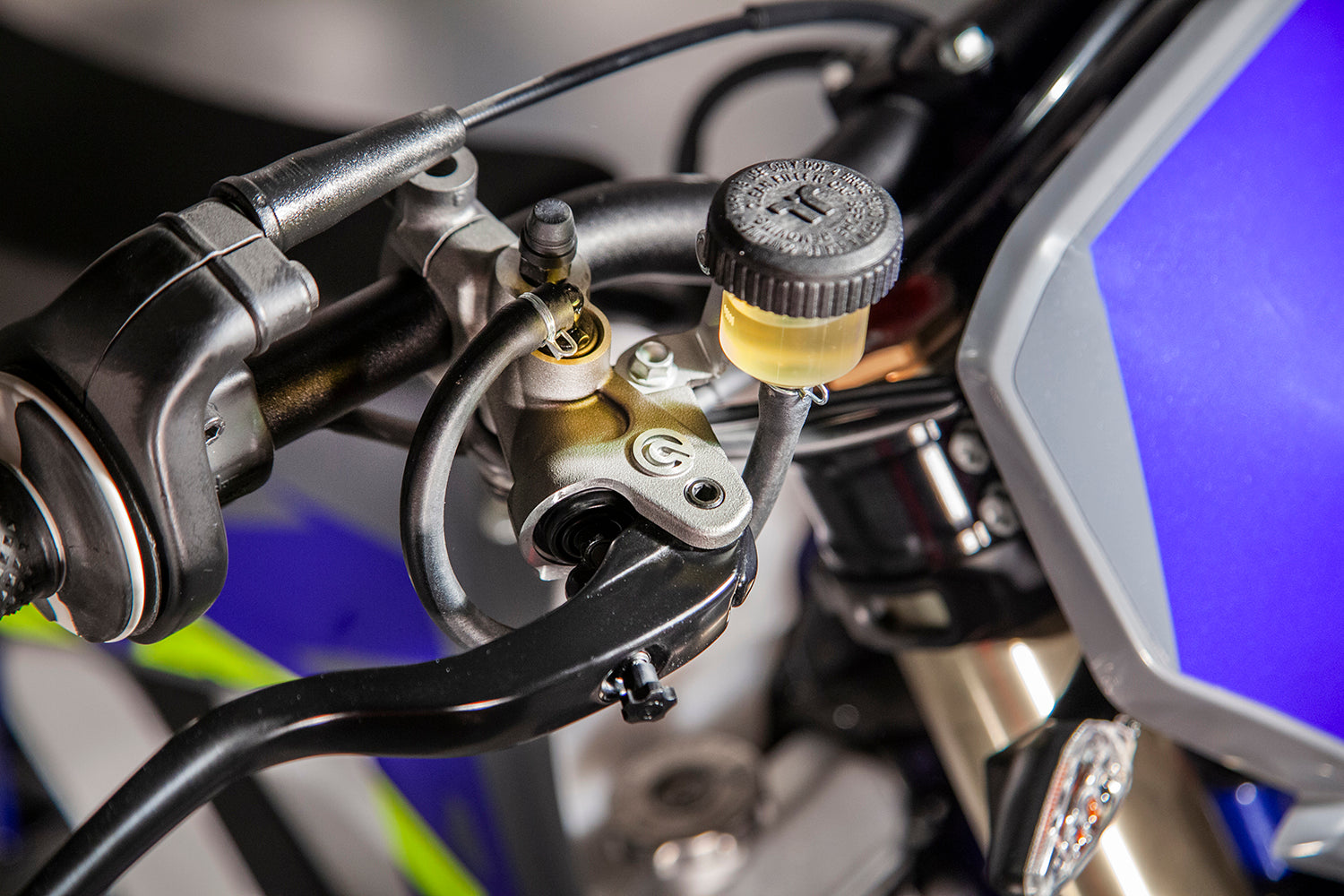

Clutch

Hydraulic, multi-disc in oil bath

Ignition

220 W Alternator

Chassis

Semi-perimeter high-strength chrome-molybdenum steel

Tank

10,4 L capacity (2,75 US gal)

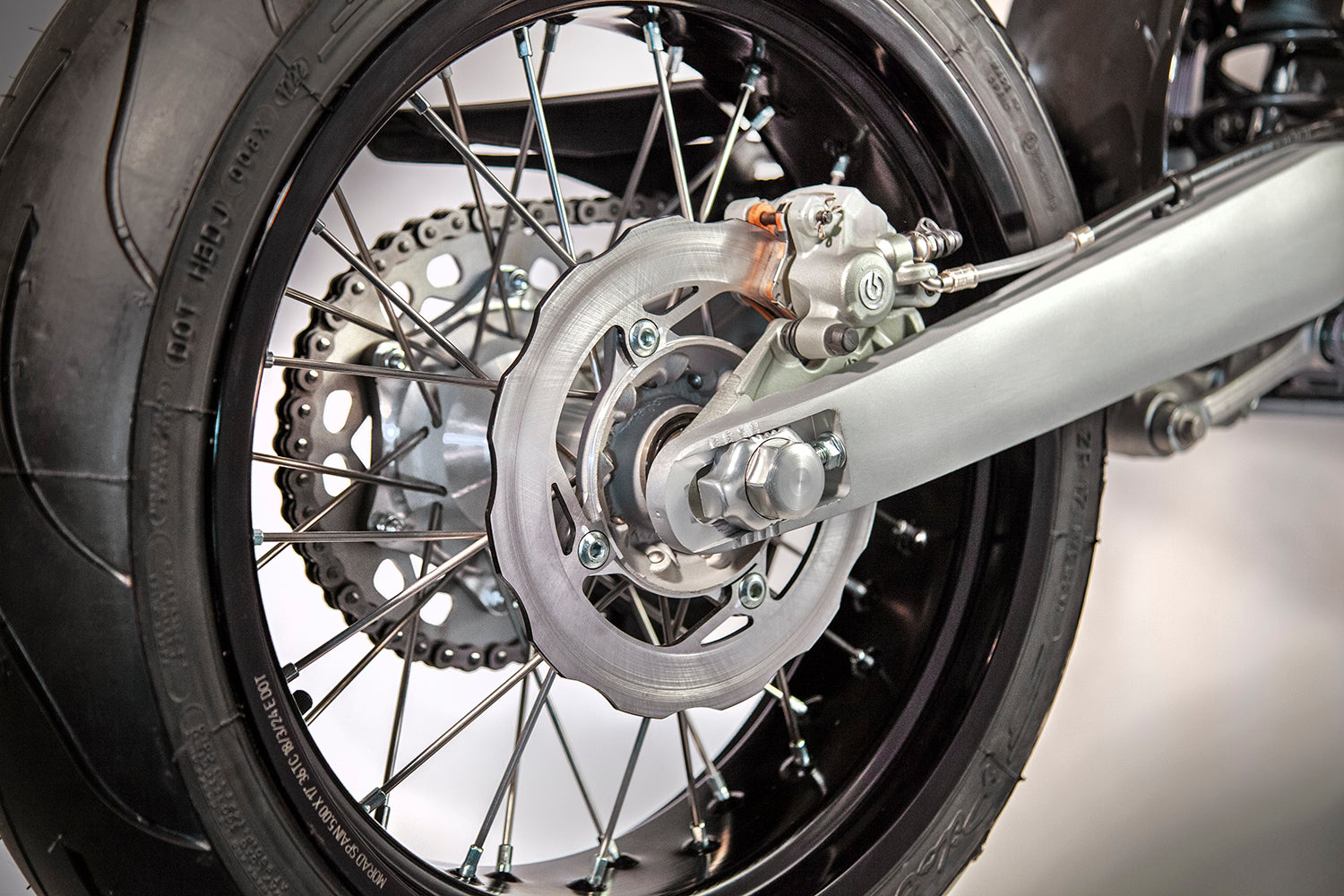

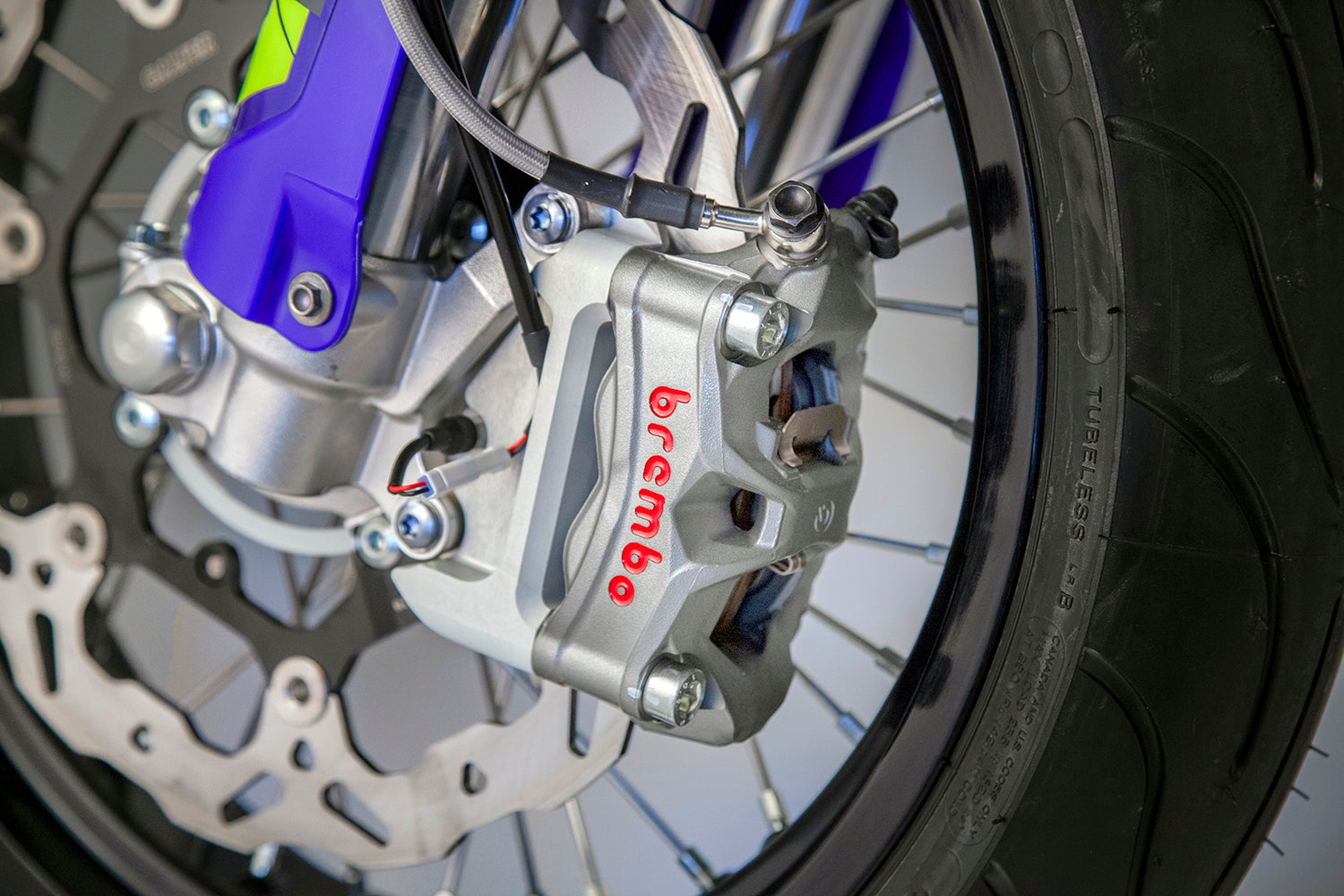

Brakes

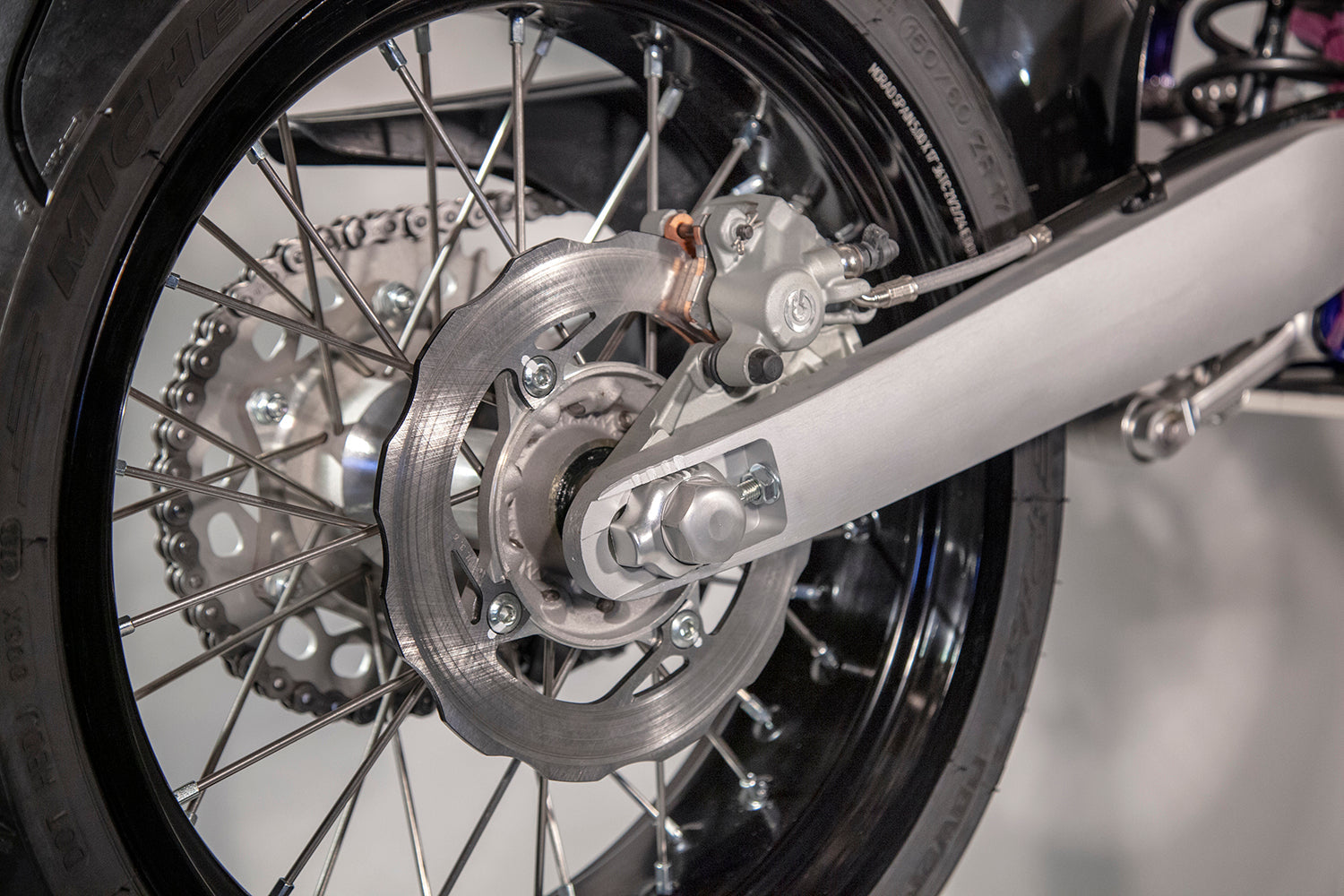

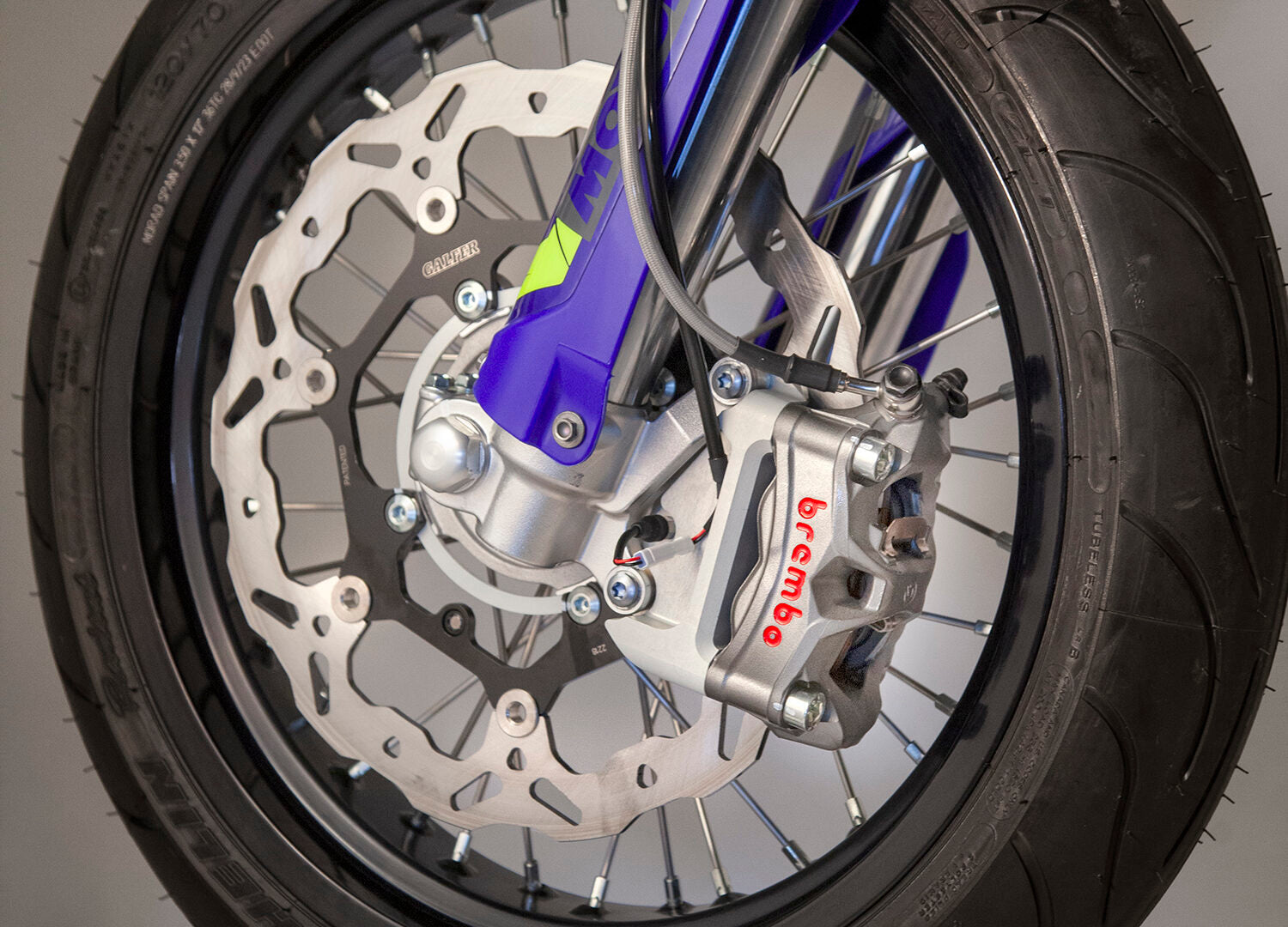

Hydraulic Ø 260 mm Floating (10,24 in) front Ø 220 mm (8.66 in) rear

Front suspension

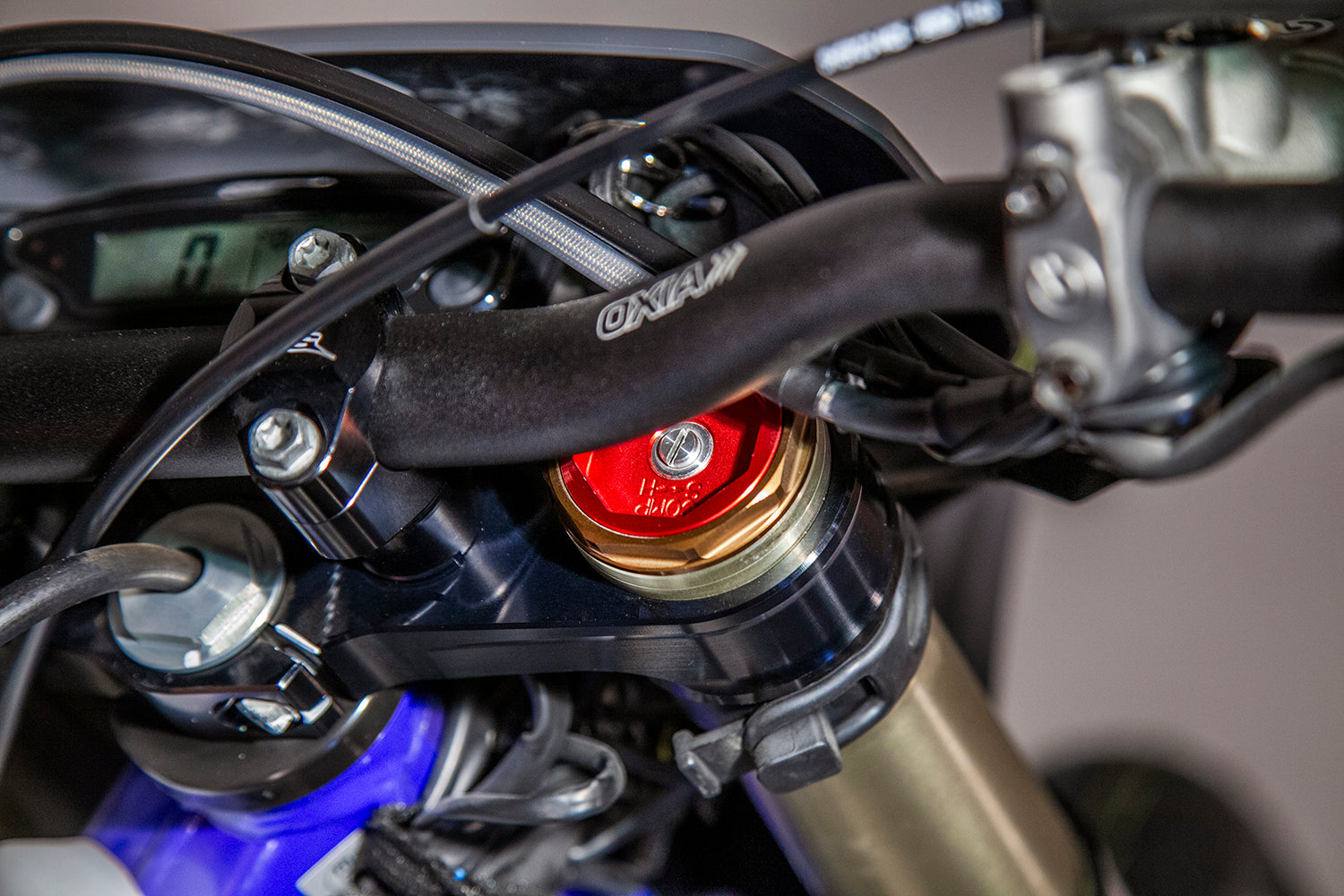

KYB fork closed cartridge with hydraulic adjustment and specific settings Ø 48 mm fork legs - 300 mm stroke

Rear suspension

KYB 50 shock absorber with hydraulic adjustment and specific settings. Ø 18 mm - 330 mm stroke

Front wheel

3,5 x 17” Black rim with Michelin tire 120/70

Rear wheel

5 x 17” Black rim with Michelin tire 150/60

Wheel base

1455 mm (57,28 in)

Ground clearance

320 mm (12,60 in)

Seat base

910 mm (35,80 in)
